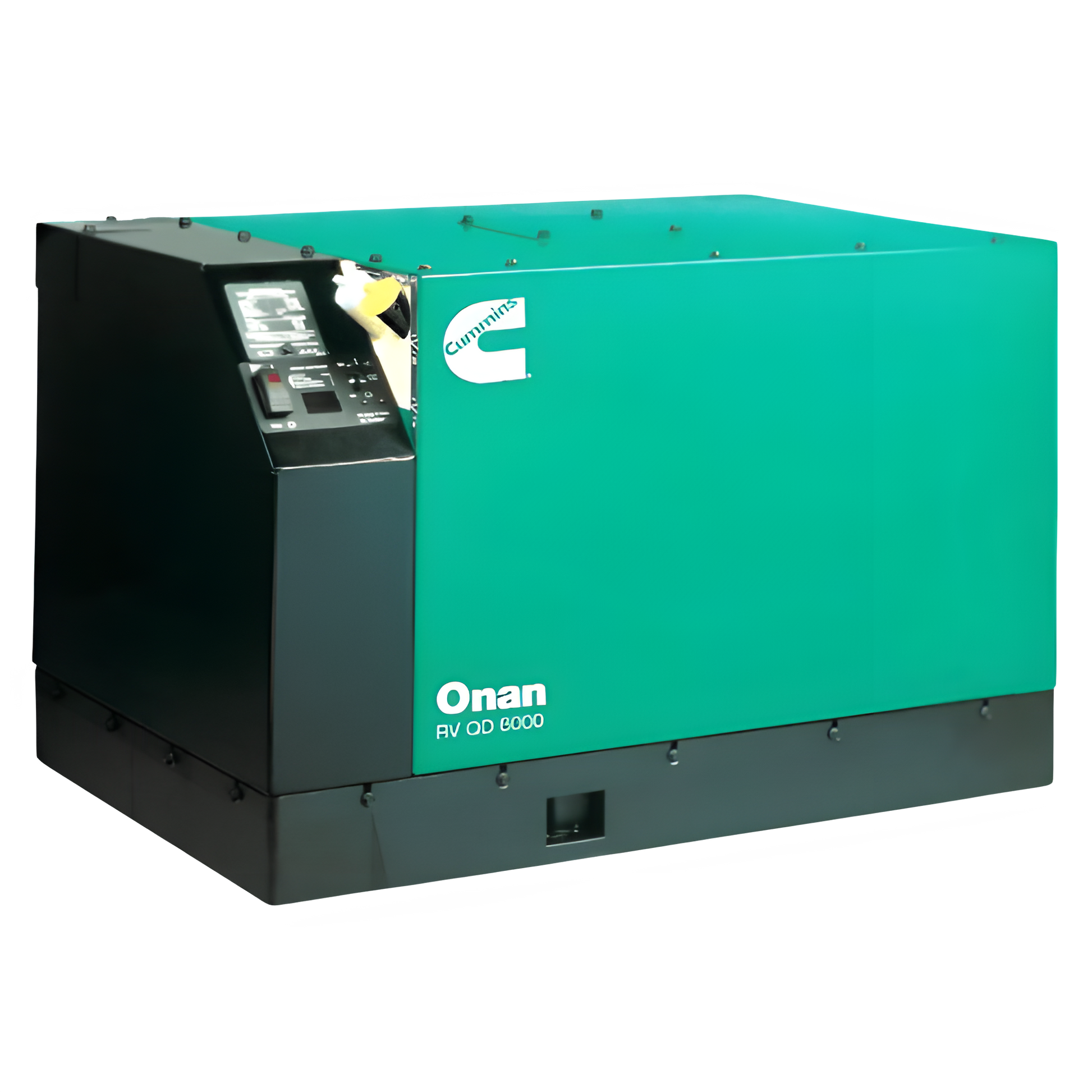

Cummins Onan QD 6000 6kW RV Generator 6HDKAH-1044 RV Diesel Single Phase 120 Volt Liquid Cooled New
The Onan RV QD 6000 Quiet Diesel RV Generator meets CARB and EPA requirements in all 50 states for diesel-powered generator applications including RV Motorhomes. Cummins Onan’s generator set incorporates digital voltage regulation and frequency control with a pure sine wave output that won’t harm electronics. Overload protected by a 30-Amp, 2-Pole circuit breaker. Includes a waterproof connector for remote operation and bulkhead-type fuel and battery connections. Expect fast, easy starts with timed glow plugs and an electric fuel pump for reliable fuel .
Features
- 6.0 kW Diesel Powered RV Generator (Model 1044)
- Designed for dual AC Type A RVs (30A 2-Pole Breaker)
- Runs two 15,000 BTU AC units w/ 1000 additional watts available
- Cummins Onan 719cc Liquid-Cooled Diesel Engine
- Automatic timed glow plugs for quick & easy starting
- Elec. fuel pump w/ full oil & fuel filter (.4 Gal/h 1/2 Load)
- Microprocessor Controlled
- Self-diagnostic capability to simplify troubleshooting
- High Quality, Pure Sine Wave Electrical Output
- Digital voltage regulator prevents damaging spikes
- Computer-Controlled Variable Speed Operation
- Matches engine speed to load demand, minimizes noise levels
- Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
- Lowers noise levels while providing cross-flow cooling
- Three-Point, Fully Focalized Mounting System
- Reduces vibration for quieter operation
- Stationary exhaust pipe connection point for easy installation
- Integrated Generator Set & Engine Control
- Provides user friendly controls and safety features
- 3 Year / 2000 Hour Warranty
Specifications
| Hour Meter |
Yes |
| Fuel Consumption |
.13-.7 gallons/hr |
| Circuit Breaker Size |
30 Amps |
| Min. Air Inlet - Front |
6.4" x 20" |
| Min. Air Outlet - Bottom |
7.3" x 12.7" |
| Grade Type |
Recreational |
| Engine Brand |
Cummins Onan |
| Starting System |
12-Volt Button Start |
| HP |
16.6 HP |
| CC |
719 CC |
| Consumer Engine Warranty |
3 Years |
| Low Oil Alert/Shutdown |
Yes |
| Product Category |
Generator - RV |
| Weight |
420 Pounds |
| Consumer Warranty |
3 Years |
| Product Style |
RV Generator |
| Product Length |
36.3 Inches |
| Product Width |
23.6 Inches |
